Solvent Extraction, as the name suggests
is a process to extract the oil from oil bearing materials
by means of Solvent, Solvent used being normal Hexane
- a petroleum bye product.
The plant is designed to extract oil directly from oil
seed containing less than 20% oil like soyabean after
flaking or it extracts oils from prepressed or fully pressed
cake of seeds containing more than 20% oil like sunflower,
peanuts, cotton seed, palm kernel, canola, copra, castor
and variety of other materials.
Troika’s proven design is simple,
robust, operator friendly flexible for easy change over
of the process material and with inbuilt safety features.
Troika plants have been operating for more than three
decades. We are one of the top manufaturer / supplier
and exporter from India for Solvent Extraction machinery.
We work in the
following capacity for our clients:
of plant and machinery for solvent extraction
of plant and machinery for solvent extraction for sunflower
of plant and machinery for solvent extraction for soyabean
manufacturer exporter for solvent extraction plant
from india for solvent extraction plant and machinery
for solvent extraction plant for soyabean
- Indian exporters for solvent
extraction plant for sunflower seeds
The extractor is horizontal in
construction a concept with universal acceptance, infact
most of the extraction plants working through out the world
have adopted horizontal design of extractor. The extractor
works on counter current, moving bed principal with variable
bed height and variable speed mechanism permitting excellent
penetration and percolation of solvent for absolute extraction.
The low speed of extractor conveyor ensures almost no maintenance.
Distillation takes place under vacuum and desolventising
of meal is done in liberally designed desolventiser Toaster.
For solvent recovery adequate capacity condensors and vent
air stripping system is provided.
Special preparatory equipments
are recommended to suit individual characteristics of raw

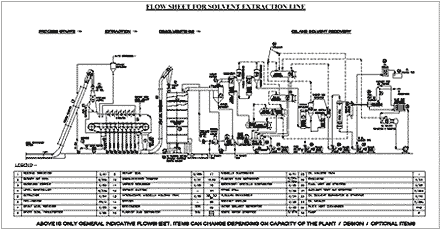

More details on plant including Specification, Flow
Chart, Process Write up available on request.
